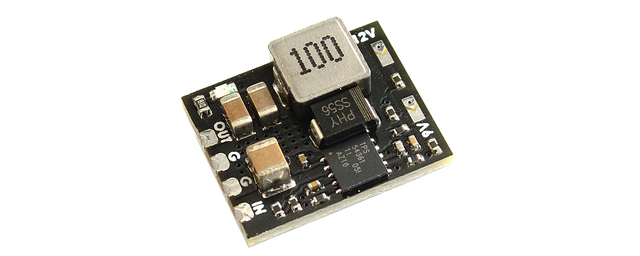

Micro BEC 6-60V to 5V/9V/12V-ADJ
by Matek Systems

Wide 6V to 60V Operating Input Range
Start-up Voltage >=6.7V
VOut 5V, 9V or 12V Adj. Default is 5V.
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
Continuous load current: Depends on input voltage and heat dissipation.
Standby current: <5mA
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (3 seconds/minute)
No protection for reversed input polarity
Pins distance: 2.54mm
Size & Weight: 18x15x4.5mm, 2g
Packing: 1pc/package

Name	Value
MANUFACTURER	Matek Systems
