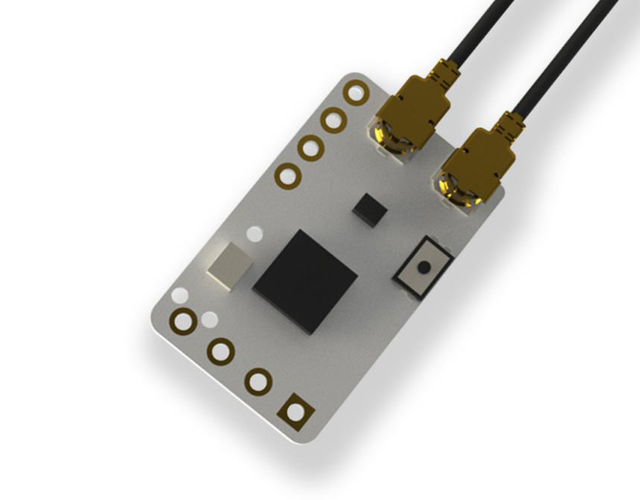

TBS Tracer Nano RX 2.4GHz Crossfire
by Team Black Sheep

TBS TRACER NANO RX FEATURES

• 250Hz: Fastest available radio and telemetry link!
• Next generation 2.4GHz technology meets robust Crossfire radio engine
• 3ms end to end latency
• "JR" and "LITE" form factor transmitters
• Nano-sized receiver with antenna diversity
• Up to 50km range. enough for most.
• For drones, planes, helicopters, cars and boats

TBS TRACER NANO RX SPECIFICATIONS

• Antnna ports: 2x u.FL / IPEX (diversity)
• Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables
• Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)
• Telemetry output power: 13dBm (20mW)
• Weight: 0.5g (receiver only)
• Size: 11mm x 18mm
• Rx sensitivity: -108dBm
