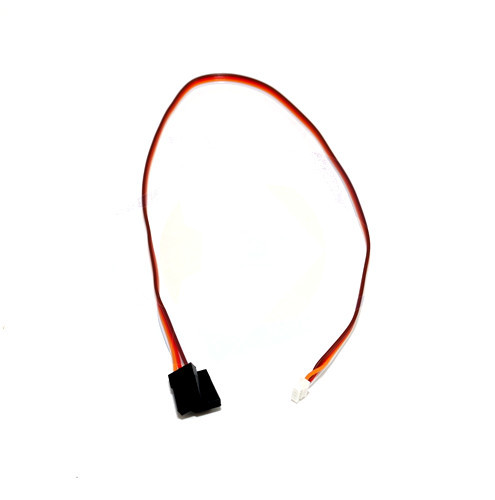

This is a 4-wire camera lead compatible with many different common FPV cameras with audio.
Directly compatible with the following cameras:
RMRC-420, RMRC-480, RMRC-540, RMRC-LL600, RMRC-600XV, RMRC-700XV, RMRC-PRO700
REQUIRES AN AUDIO AND VIDEO JUMPER CABLE TO ATTACH TO THE STANDARD READYMADERC TRANSMITTER CABLES. Will plug in directly to many OSD's, and adapters are available to allow this cable to be used with the ImmersionRC OSD and transmitters.
May fit other 4-wire cameras by simply rearranging the the order of the wires on the camera connector. This can be done by carefully lifting the tabs with a hobby knife and removing the wires, and then re-inserting the wires in the proper order for your camera. It is up to the user to verify the proper order of the wires on the connector.
Total cable length of 12", terminated in a male servo connector (JR style) with video, power, and ground for video, and a male servo connector (Futaba style) with only the audio line. Ideal for connecting your camera to the Eagle Tree OSD's, or RangeVideo OSD. Will connect directly to the transmitter cable I offer by using the available video and audio jumpers.
PLEASE NOTE: This cable feed the voltage directly, so if you're powering your system with a 12V battery and you have a 5V camera you need to use a regulator before the cable.
